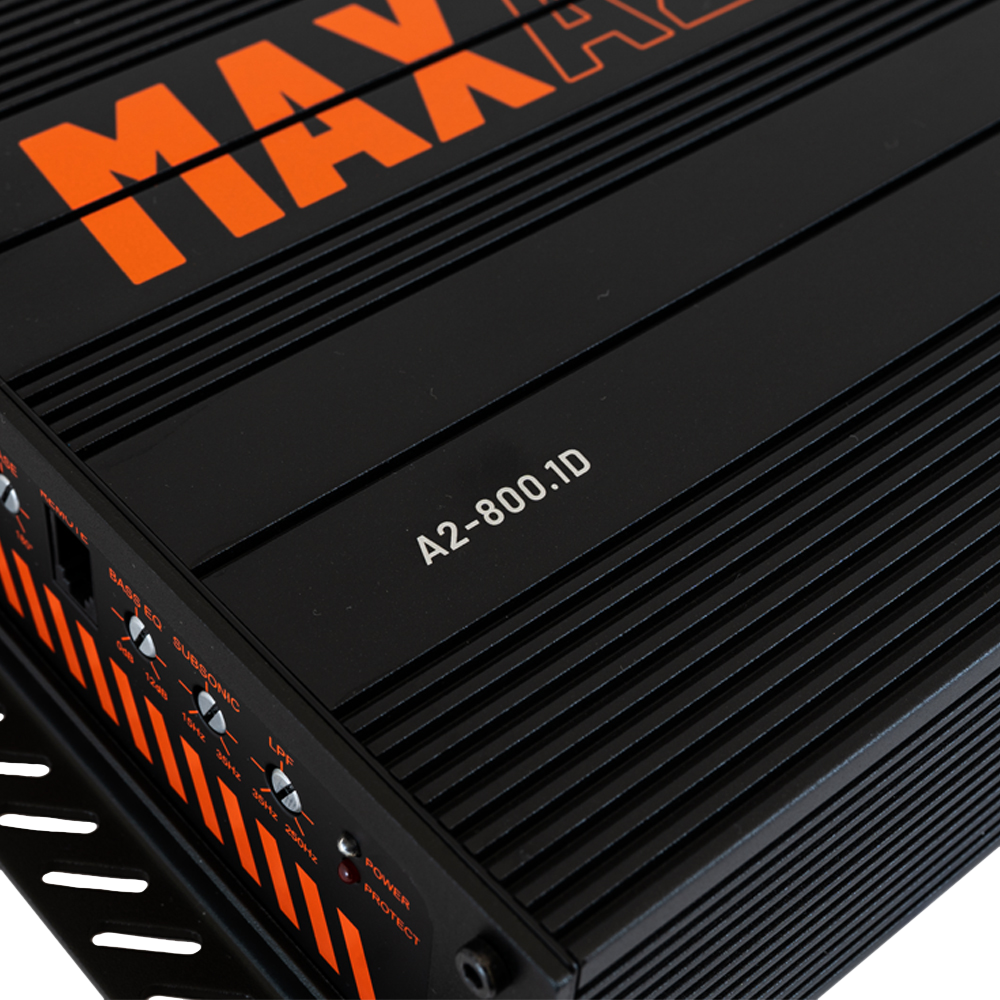

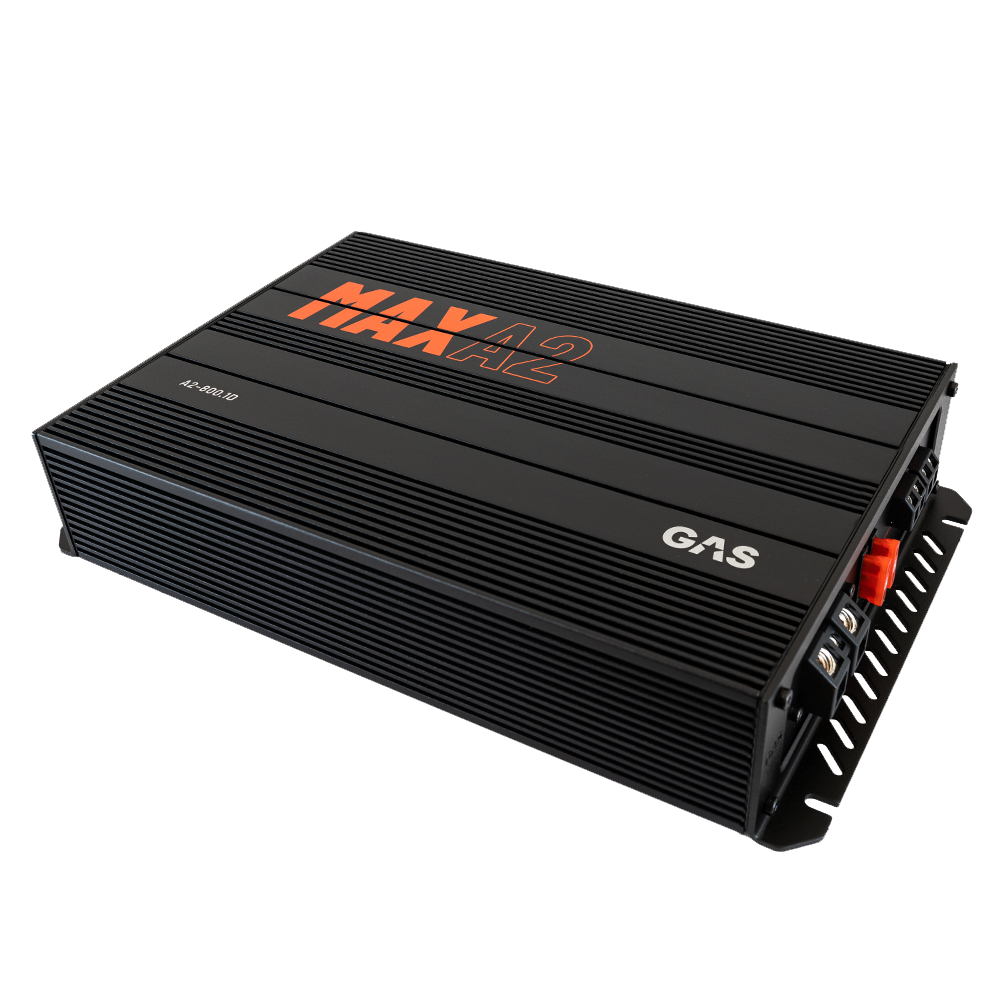

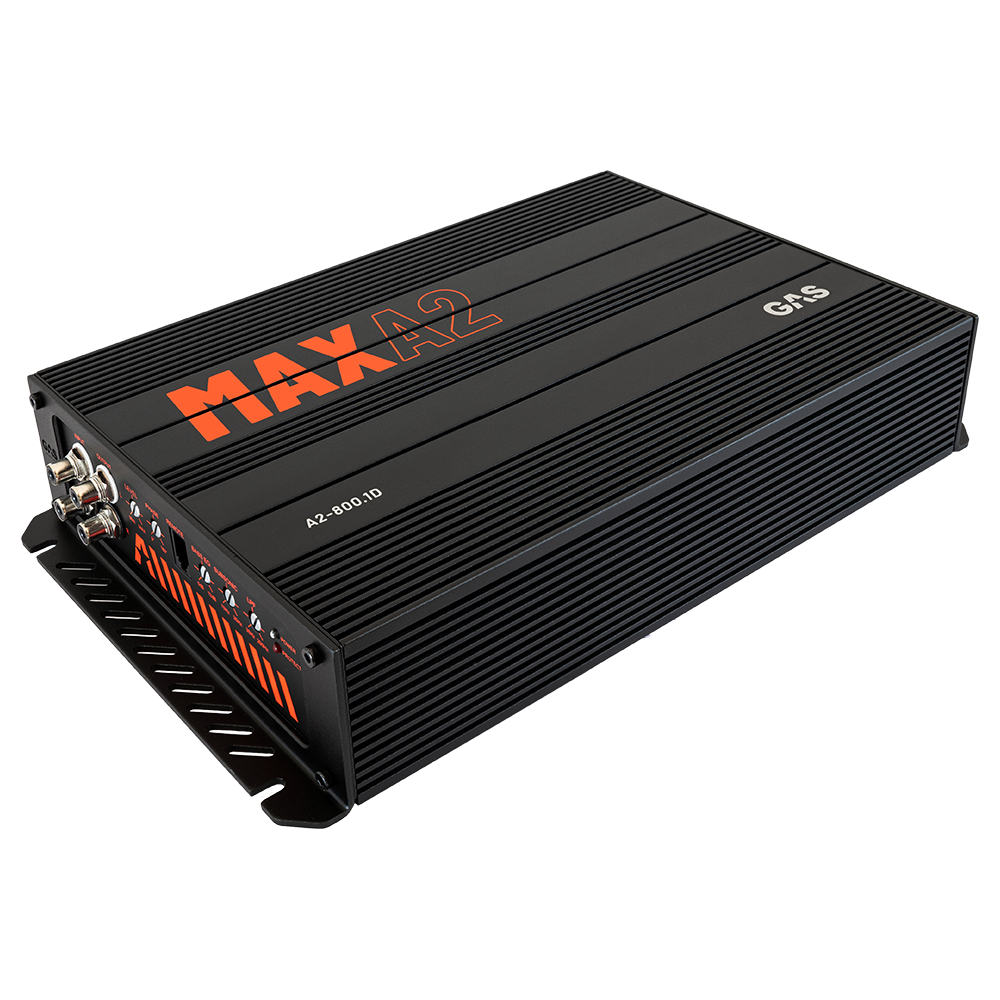

MAX A2-800.1D

MAX A2-800.1D

Feed your system with the raw power from a MAX A2 amplifier! We welcome you to the next level with oversized capacitors and MOSFET transistors on a solid, double-sided PCB!

SKU: MAXA28001D

Description

GET READY FOR RAW POWER

Level up your system with deep powerful bass that will shake your car to its core! The MAX A2 amplifiers have a solid double-sided PCB with oversized capacitors and MOSFET transistors.

DUAL DIFFERENTIAL INPUT

You get sniper precision output control with the high quality 24dB variable sub-sonic- and low pass crossovers, the exact same technology that was used on the infamous GAS Competition line!

HIGH QUALITY HIGH PASS

You get sniper precision output control with the high quality 24dB variable sub-sonic- and low pass crossovers, the exact same
technology that was used on the infamous GAS Competition line!

(And just to be sure, we have installed advanced safety systems including soft start and shutdown functions to protect your system against voltage spikes and drops, overload, overheating and short circuiting).

Additional information

Component

Amplifier

Channels

One

Input mode

Mono

Power RMS (2 Ohm)

1x600W

Power RMS (4 Ohm)

1x340W

Freq. response

10-250 Hz

Low Pass Filter

35-250 Hz

S/N Ratio (A-weighted)

>92dB

Bass EQ

0-12dB @45Hz

Crossover Slope

24dB

Power Voltage

10-16V

REM Voltage

10-16V

Input Sensitivity

0.2-6V

Input Impedance

20K Ohm

T.H.D

<0.05%

Power Fuse

20x40A

Damping Factor

> 130

RCA Line Out

Yes

Power RMS (1 Ohm)

1x800W

Product Manual MAX A2-100.2

Download
