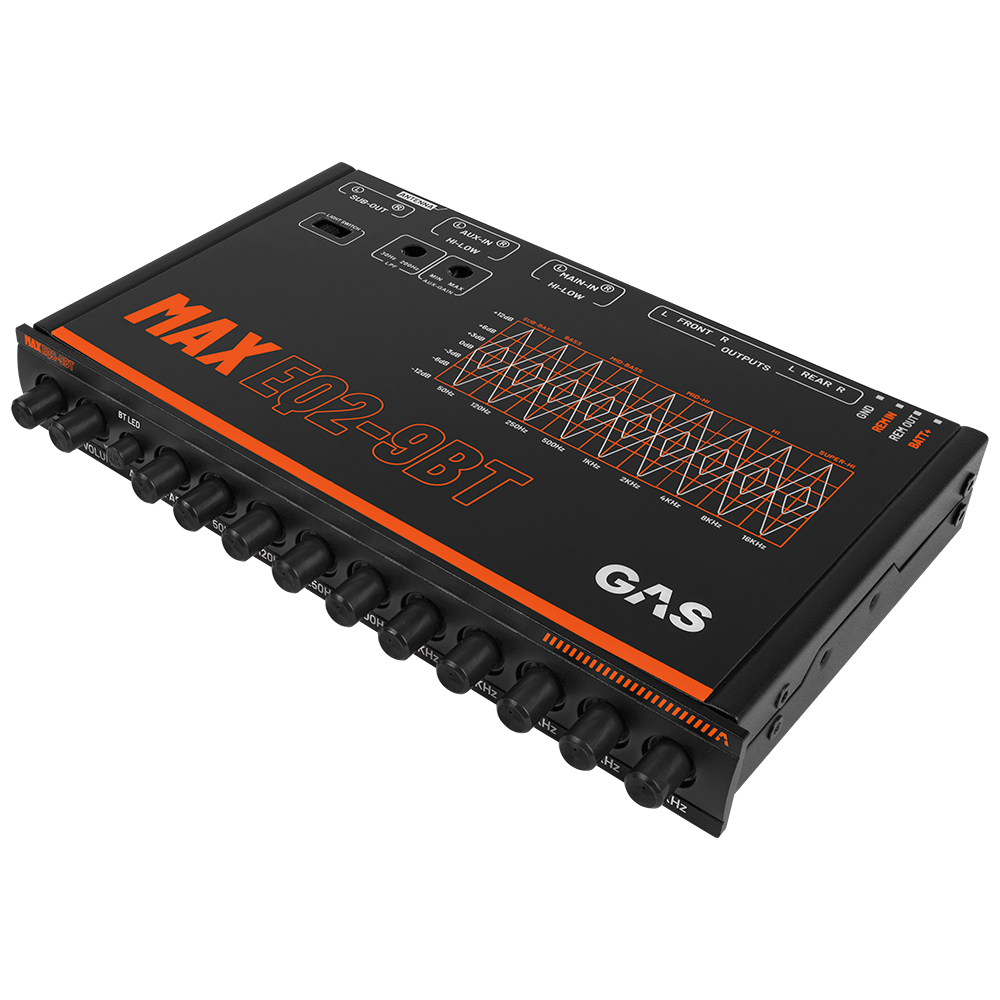

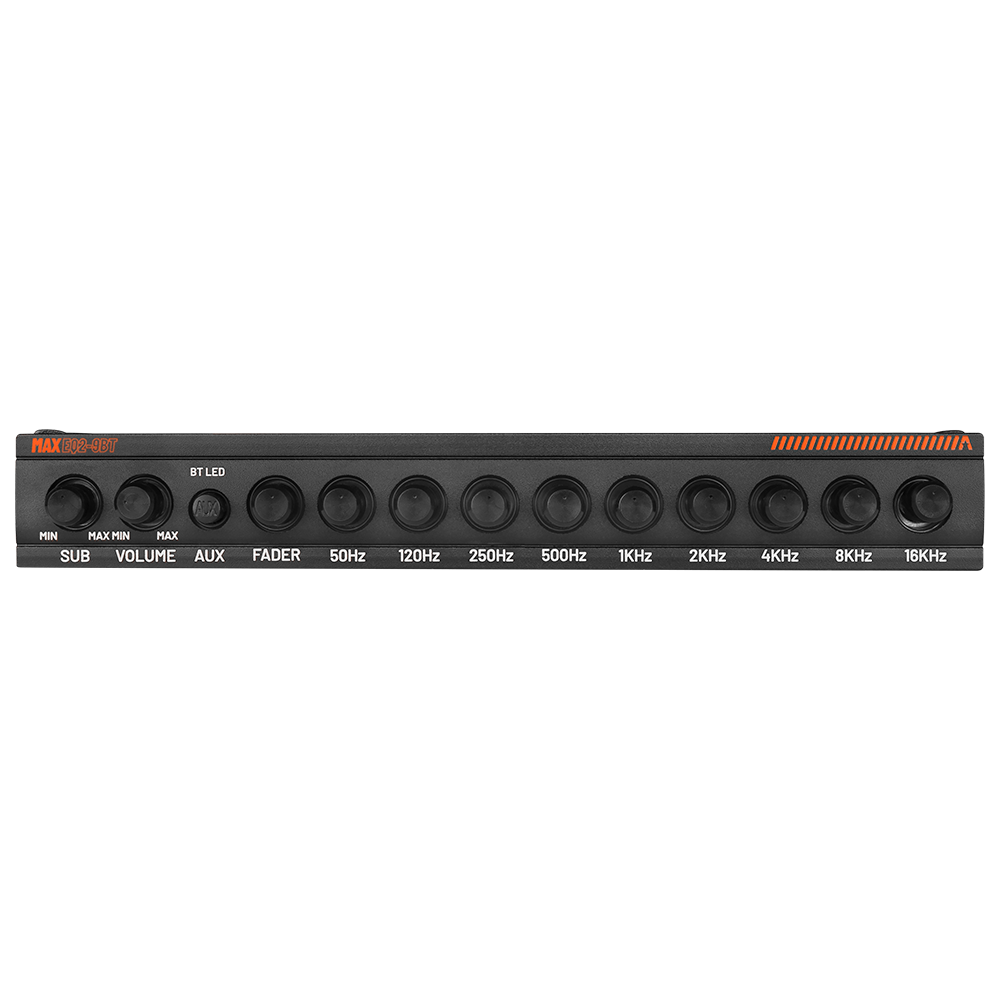

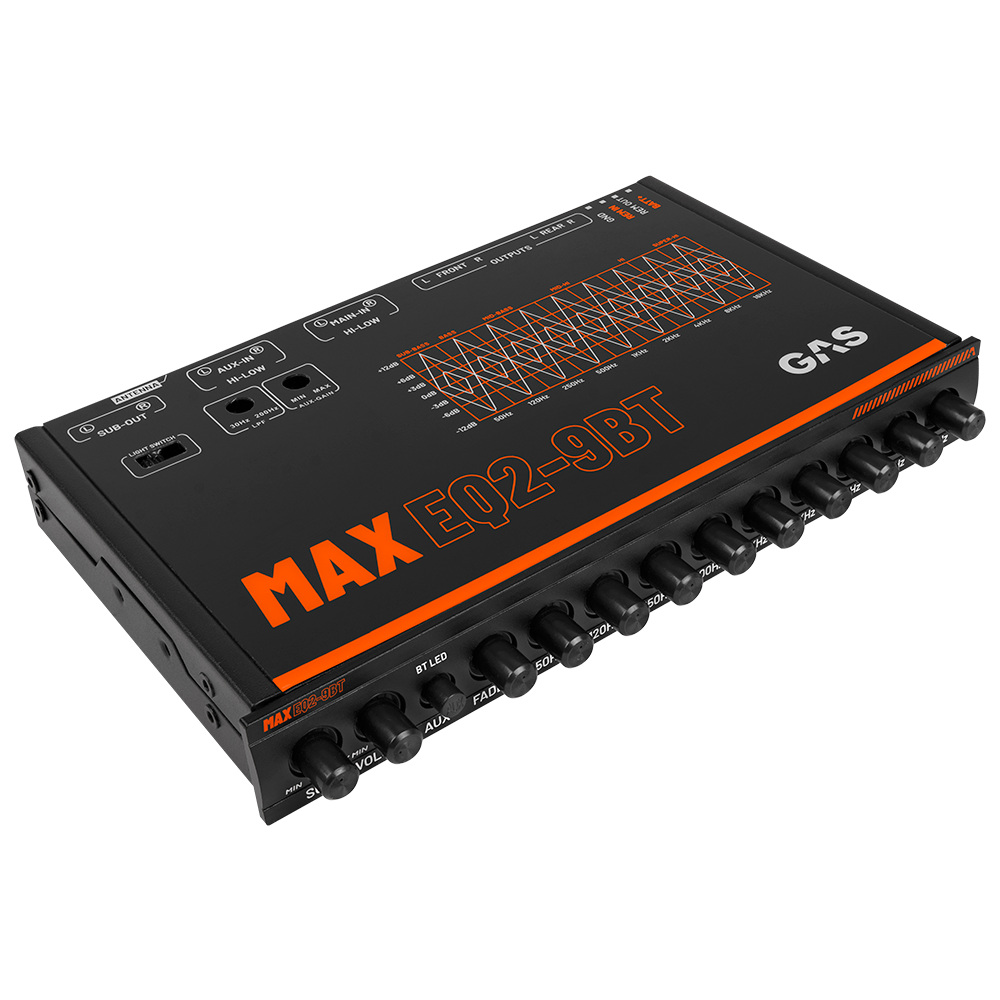

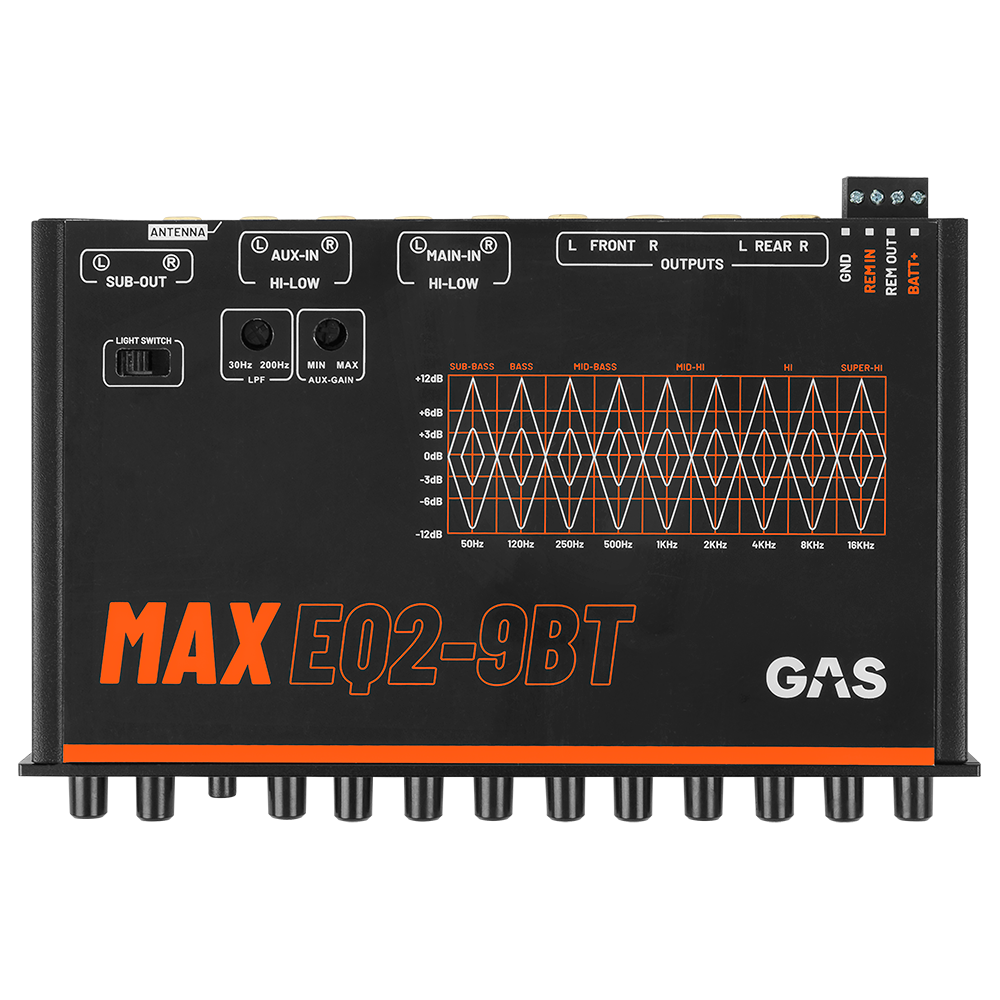

MAX EQ2-9BT

MAX EQ2-9BT

We’ve taken control to the next level with a powerful and intuitive 9 band graphical.

MAXEQ29BT

Description

TWEAK WITH SUPER PRECISION

We’ve taken control to the next level with a powerful and intuitive 9 band graphical. No nonsense and no extra noise added thanks to its high-quality internal components, with exceptional linear frequency response from top to bottom.

THE QUICK AND EASY WAY

Shape your favorite music according to your liking. Do you want to boost the bass and cut some treble? Or do you want to alter the master volume (or even the subwoofer level)? Why not adjust the fader with awesome precision? This is all at your fingertips with the MAX EQ2-9BT.

TAKE CONTROL

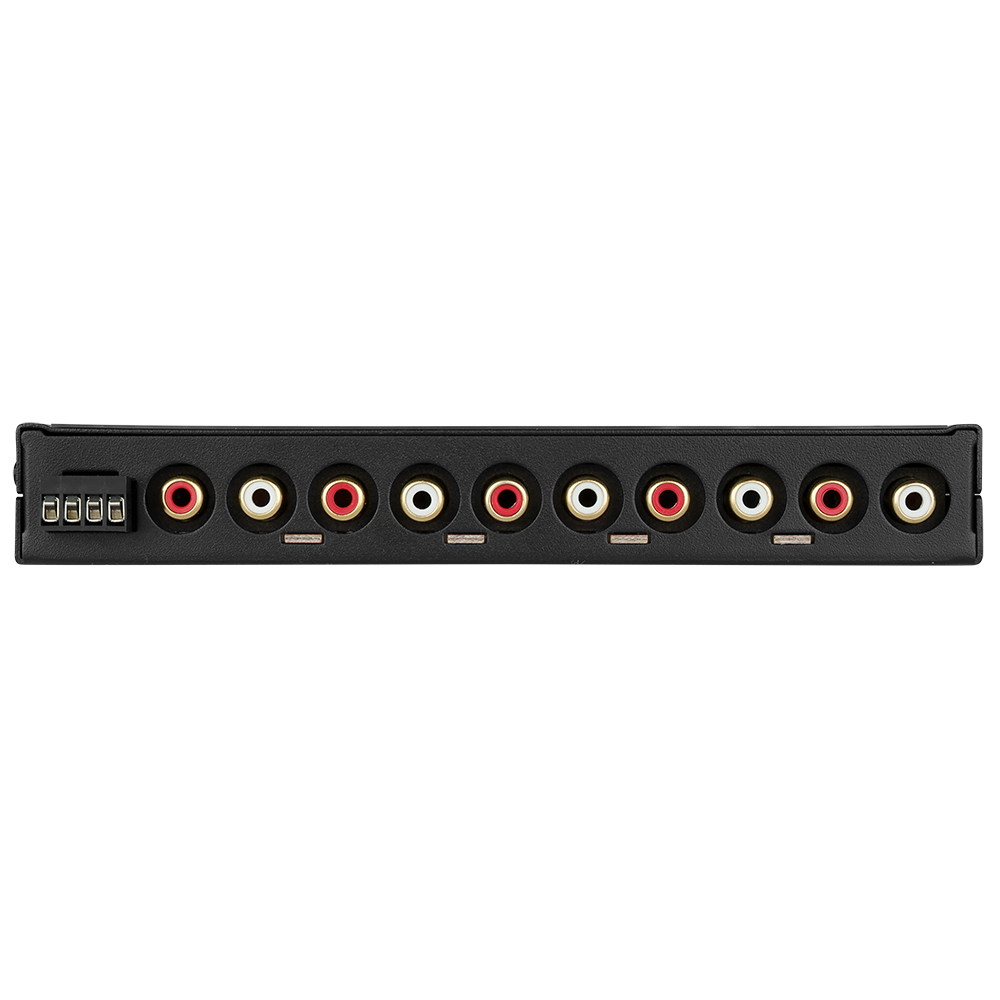

The equalizer should never be the weakest link in your sound system. This powerful EQ features three pairs of 6V (RMS) gold plated and low impedance RCA inputs, high level inputs for easy installation and an automatic turn off system.

WIRELESS FREEDOM WITH BLUETOOTH 5.0

We live in a digital age and you’re never more than a few taps away from playing a song, a playlist or a collection of awesome beats. Stream directly from your phone, tablet or computer directly to the equalizer via Bluetooth 5.0! Showing off your sound system has never been easier.

Additional information

Series

MAX

Component

Equalizer

EQ

9 band

EQ band

120Hz, 12kHz, 1kHz, 250Hz, 2kHz, 4kHz, 500Hz, 50Hz, 8kHz

Pre-out channels

3 pairs

Input mode

BT, Main/AUX

Bluetooth 5.0

Yes

Freq. response

10-50 000Hz (+/-1dB)

Output (RMS)

6V

Output (MAX)

7V

T.H.D

0.01%

Boost/Cut

12dB

S/N ratio

101dBA

Input Sensitivity

50mV-3V

Head room

20dB

Input Impedance

20K Ohm

Output impedance

1K Ohm

Stereo separation

82dB/1kHz

Power Voltage

11-15V

REM output voltage

12V

Subwoofer crossover

18dB/Oct, 30-200Hz

ATO (Auto Turn On)

DC-Offset, HI level

Product Manual MAX EQ2-9BT

Download

User manual for MAX EQ2-9BT

Datasheet MAX EQ2-9BT

Download

Datasheet for MAX EQ2-9BT
