MAX M140-BTX

MAX M140-BTX

Everything stems from your car stereo. If you haven’t replaced it yet – it’s time.

MAXM140BTX

Description

CUSTOMIZABLE AND FLAWLESS AUDIO

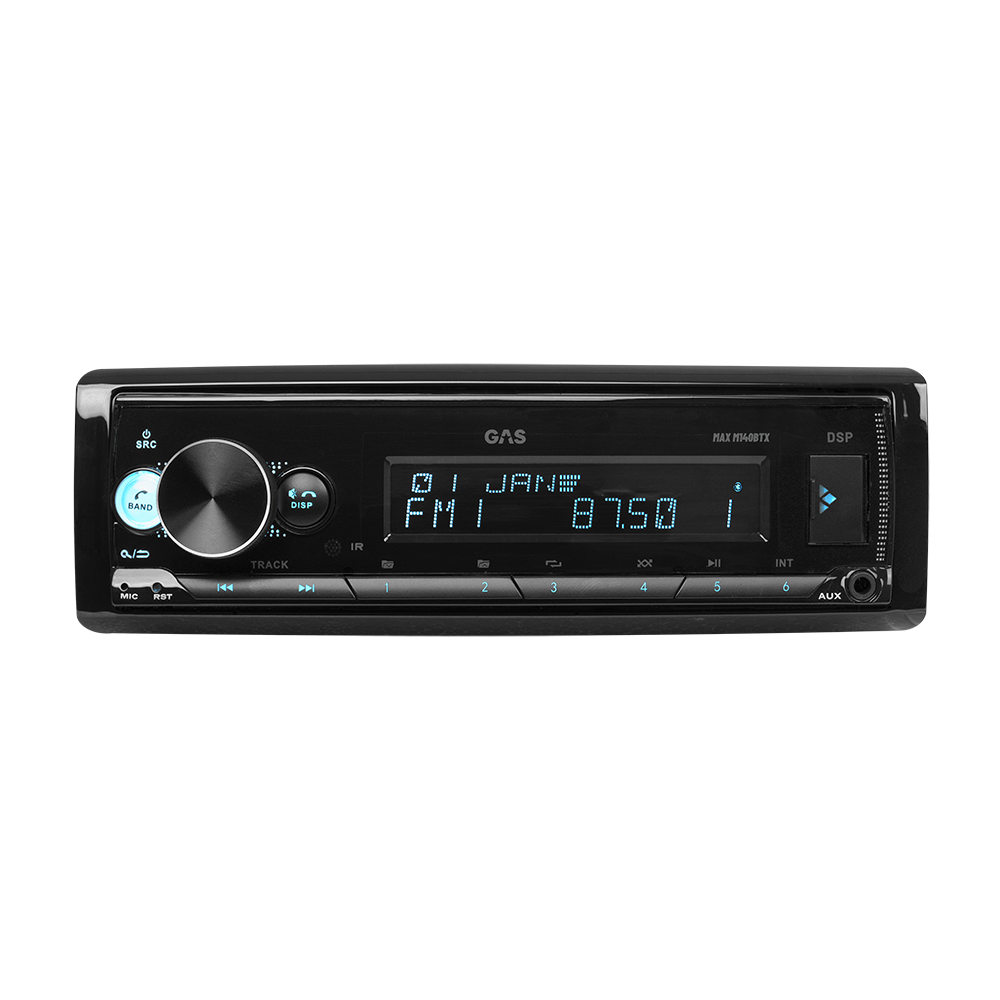

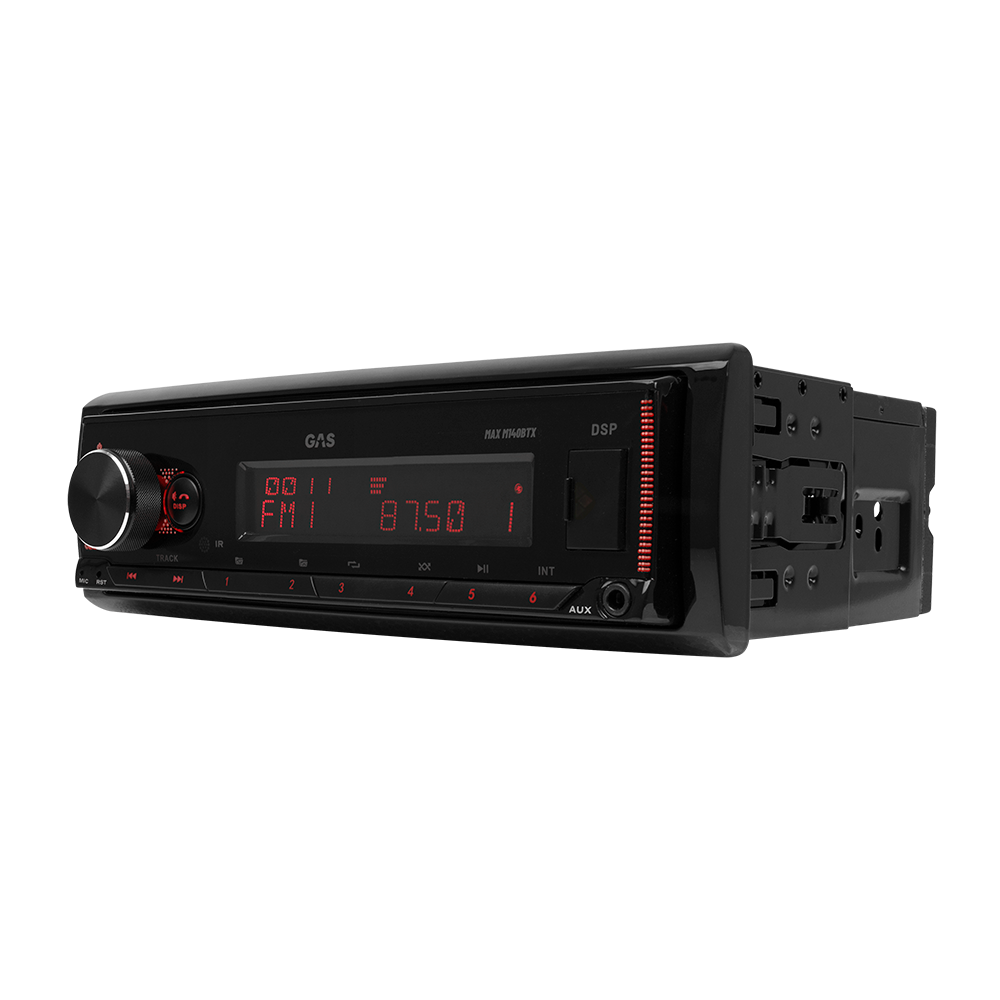

Take it to the next level with the MAX M140-BTX. This powerful single DIN head unit brings Wav and Flac Lossless Audio Playback with support for 24Bit/96kHz for an excellent sound experience. A high performance DSP engine gives you full control over your setup with an Advanced Network Mode for 2- and 3-way crossover systems. But we know that good is not enough for you. That´s why we added a 20-band Equalizer for customization and Time Alignment for total accuracy of your sound system.

MAX IN EVERY POSSIBLE WAY

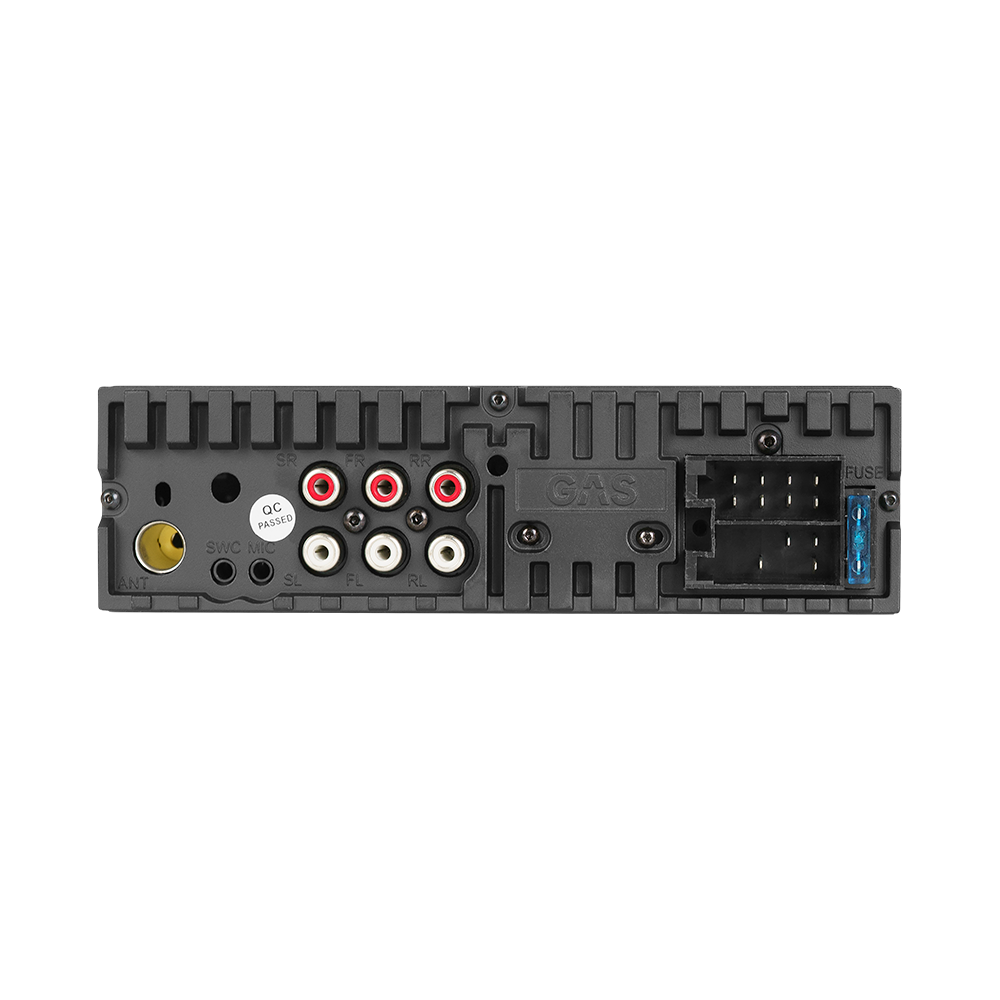

We don´t call ourselves Audio Power for nothing! The built in 32-Bit DSP and 24-Bit DAC gives you maximum sound quality. We know you’ll want to add one, two or more amplifiers to the MAX M140-BTX, and this requires at least 3 pairs of RCA outputs – Check. We also made sure to make them low impedance and True 4Volt. A strong pre-out signal means improved SNR and less risk of noise interference.

NEXT LEVEL CONNECTIVITY

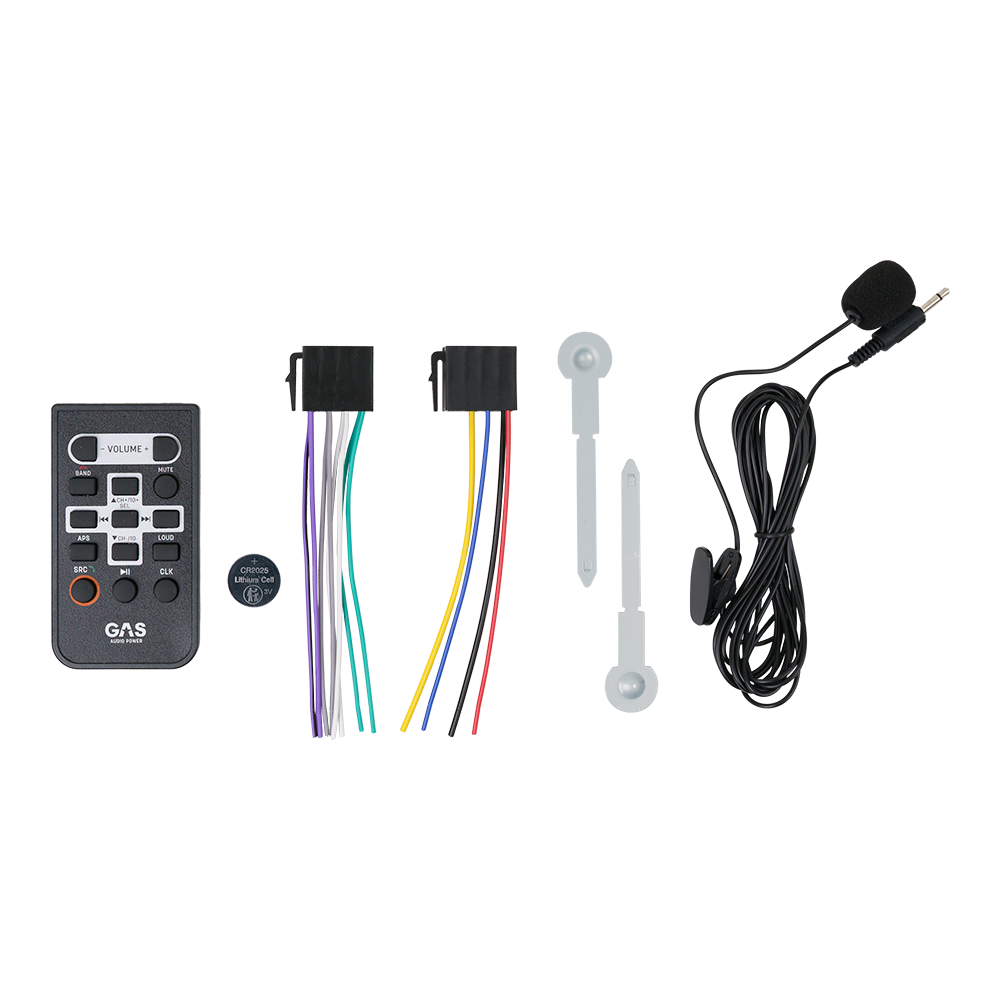

Bluetooth support is important, so is handsfree. We’ve included two microphones, one in the head unit iself and one external with included cable. Do you think we’re satisfied with just Bluetooth support? Never! We took it to the next level with App control – right out of the box. Download the GAS MAX HRC X app and take control over your sound system from your phone. Stand beside the car, listen to it, and tweak the sound the way you want it.

Additional information

Series

MAX

Component

Head unit

Size

1-DIN

Nominal Impedance

4-8 Ohm

Power MAX

4x45W

Freq. response

15-20.000 Hz

Product Manual MAX M140-BTX

Download

User manual for MAX M140-BTX

Software Update - 2022.09.02

Download

Software update for the MAX M140-BTX head unit

Software Update - 2023.05.29

Download

Software update (MCU & DSP) for units with serial number higher than MAXM140BTX220601100
