MAX PMW1-64

MAX PMW1-64

Is it an awesome woofer? Or is it a next-level midrange driver? That’s up to you! The true next-level MAX experience.
MAXPMW164

Description

In Sweden, we have the expression “Lagom” for when things are in a moderate amount. In this aspect, the MAX PMW1-64/84 speaker is as far from Swedish as it can be. It was made to blow everyone’s mind and give you the true next-level MAX experience.

A MELTING POT OF AWESOME

This midrange woofer will give you all the performance you’ll need. We’ve combined a Water Repellent Cone (WRC), HQ ferrite motor, copper wire voice coil, Kapton former and a copper shorting ring into one beautiful speaker. With some tweaks, the result is a product that sparks crazy amounts of awesome. We call it the MAXimal sound experience!

AWAKE YOUR PASSION FOR UNCOMPROMISED AUDIO

To get the best performance out of your sound system, you need to challenge yourself to reach new heights! The MAX PMW1-64/84 lets you experience every part of the midrange spectrum. It’s a truly exciting midwoofer with a dynamic and detailed sound that also delivers loads of authority. By using clever design choices such as a low FS design, a progressive A3 NBR suspension and a polycotton/Nomex spider we have created a speaker that will both surprise and impress!

WHEN OTHERS GO LOUD, WE GO LOUDER

You’ll want to dial that volume knob beyond 11, and a speaker that lets you go berserk demands two things: tough materials and a cool design. The basket is made of steel with a custom M design and we’ve added industrial sand paint to make it look as good as it plays. Another cool thing is the DVS™ (Dual Ventilation System) for reduced distortion and increased heat dissipation.

WE’RE NOT QUITE DONE YET

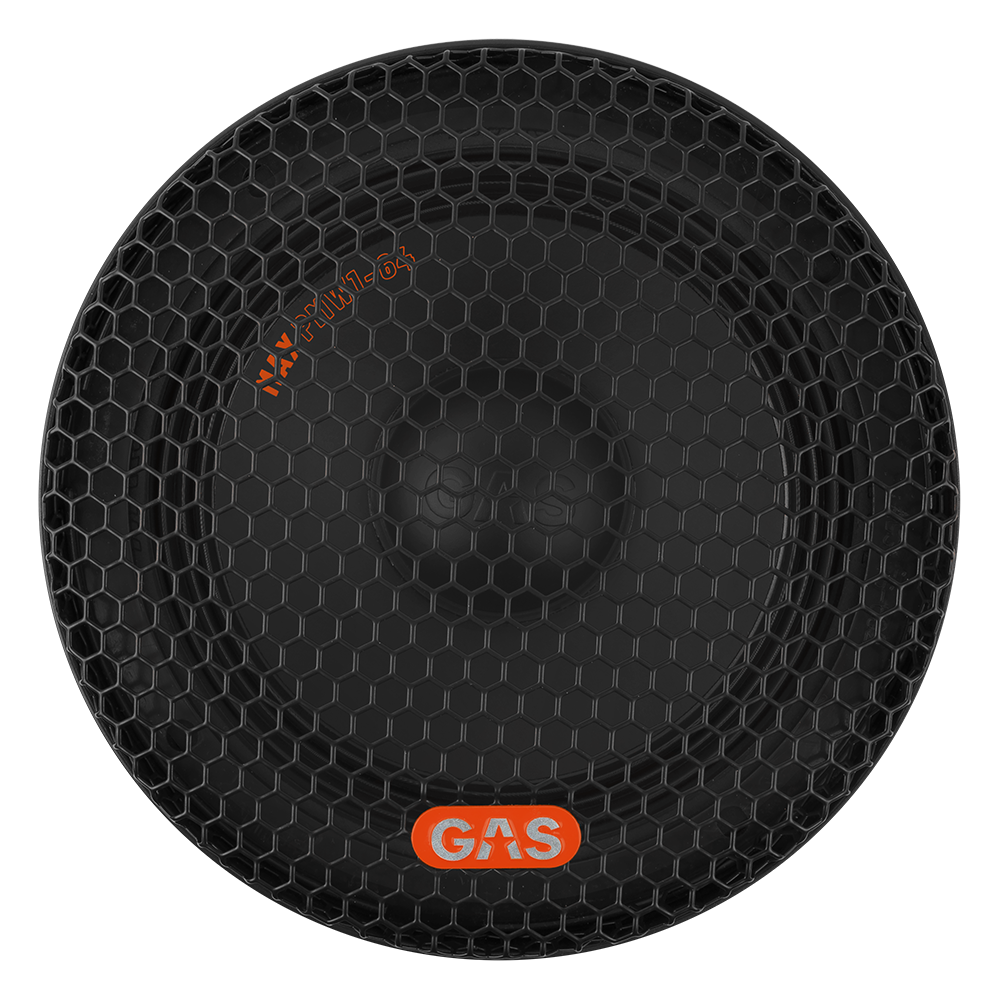

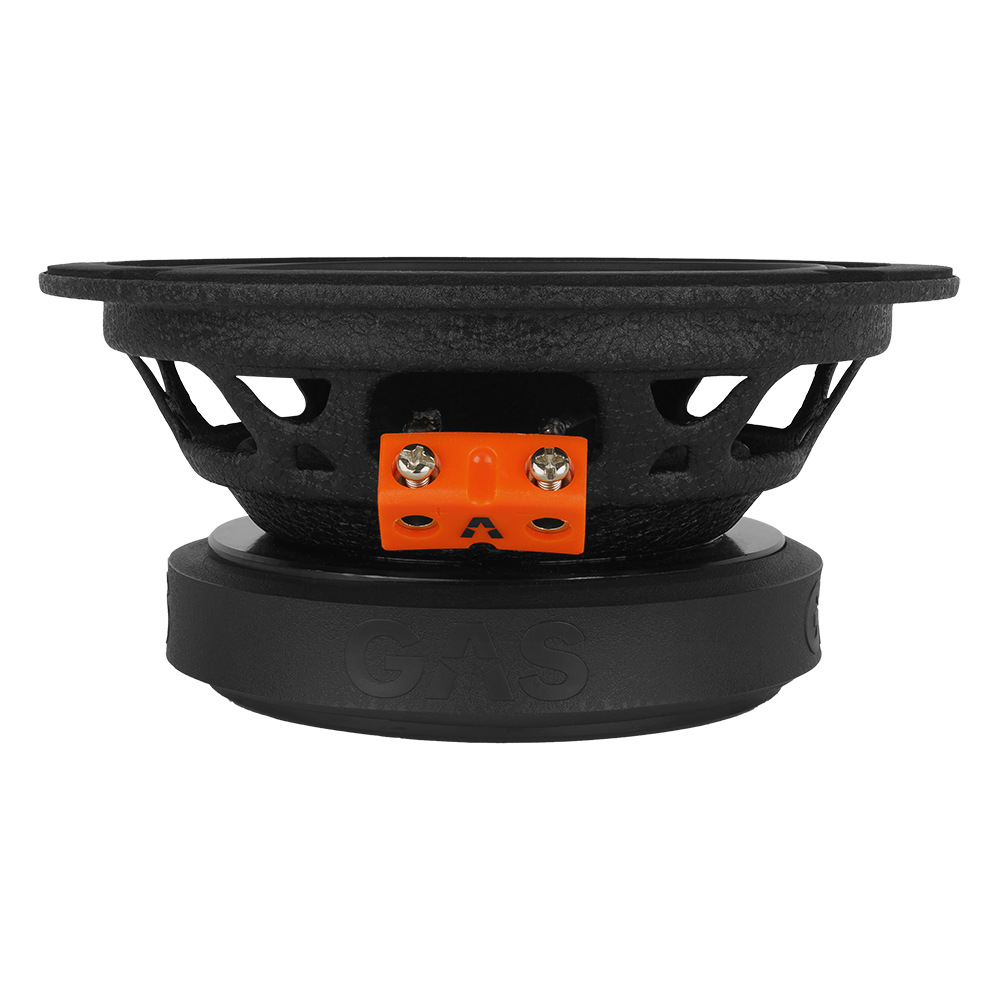

You should take care of the things you love, so we’ve included a hex grill with an aluminum badge to protect your new favorite speaker. If you look closely, we’ve added something we call a CD Crosshead terminal. This is an oversized “Cable Direct” terminal. It’s massive – and can fit up to 10mm² (8 AWG) wires! SPL is way of life after all, so add more speakers to your SPL build – you know you want to.

Additional information

Series

MAX

Component

Midrange speaker

Size

6.5 inch

Nominal Impedance

4 Ohm

Power RMS

125W

Power MAX

250W

Freq. response

65-9.000 Hz

Cone

Pressed paper with WRC

Magnet

HQ Ferrite

Product Manual for MAX PMW1-64/84

Download

User manual for MAX PMW1 (64 & 84)
